Mould Construction - framing, planking and fairing

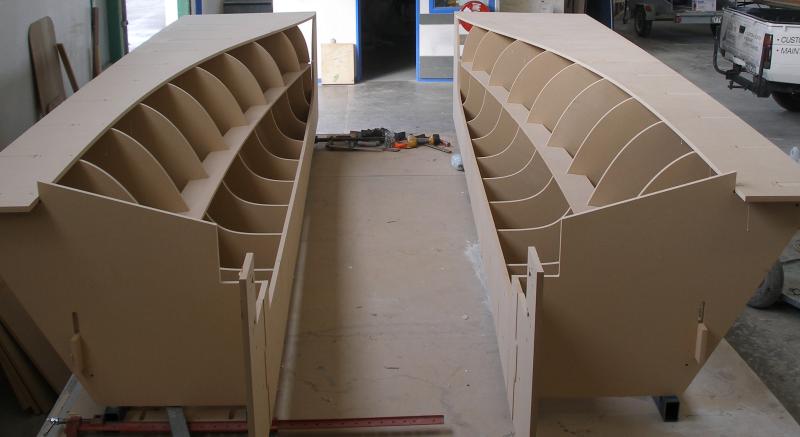

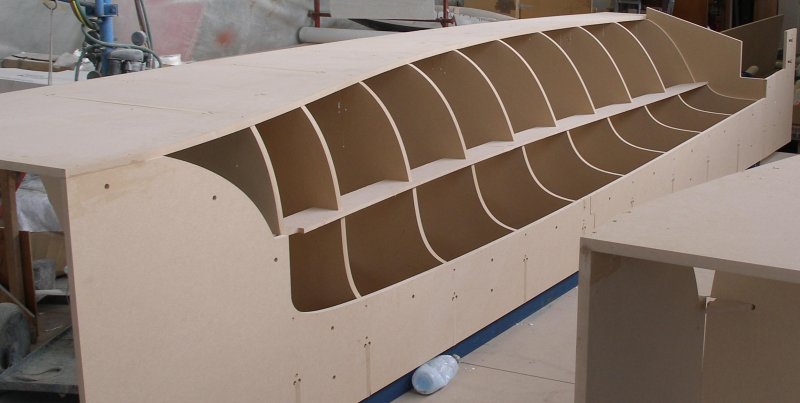

The framing has been CNC cut from the 3D computer model. To make the construction process easier and less error prone we're building the shell in two halves.
The new mould is being constructed by the guys using space kindly provided by Davie Norris Boats

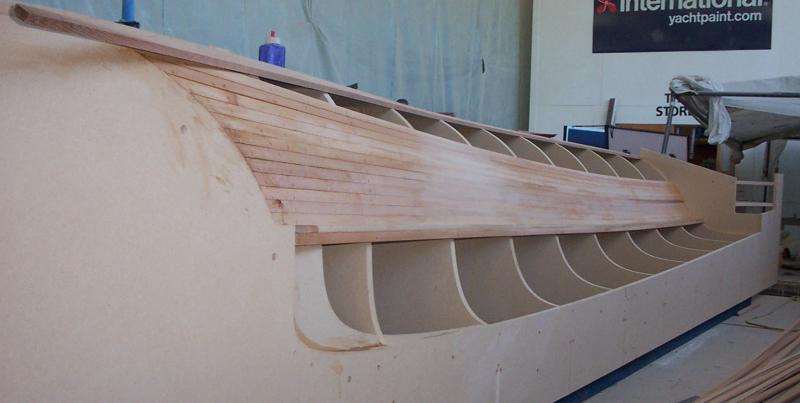

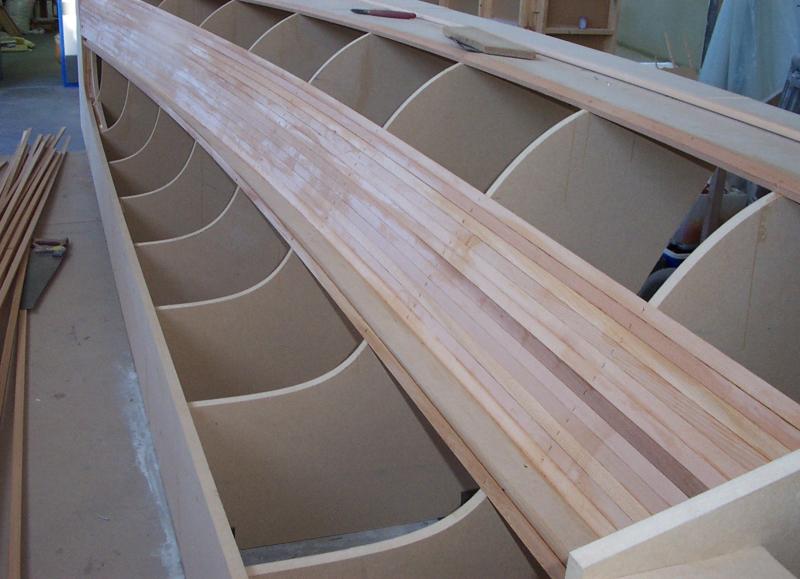

Once the framing is complete we now line with strip cedar

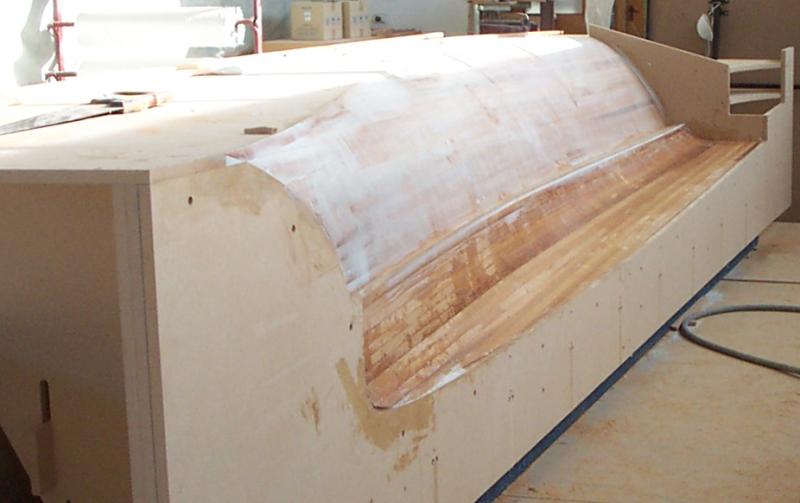

Starboard mould fully planked and partially faired
